Falcon Breakout Box Adapter Cables

Request Quote

Adapter cables are also for sale on the Hart Aviation Tools' eBay Store.

Falcon Adapter Cable Table

Electrical Test Adapter Cables

Note: Hart Aviation adapter cables fit Hart Aviation 50 pin Breakout Box P/N PCT50900-50 & Dassault 50 pin Breakout Box P/N TF50B-39-001. Hart Aviation adapter cables fit Hart Aviation 90 Pin Breakout Box HAC-AE1093-1A or DFJ Breakout Box P/N AE1093-01 (90 pin Cut-off Box). And DFJ Adapter Cables show the Falcon Adapter Cable part number for your reference.

Download Breakout Box Adapter Identification and Usage Chart
Adapter for 50 Pin Breakout Box Adapter for 90 Pin Breakout Box Dassault Falcon Part Number Equipment Item Image
F29502-HA F29502R-HA FAL 1669502

F2000 Cabin Pressure Controller (50HP), Fuel Quant Mgnt computer. **

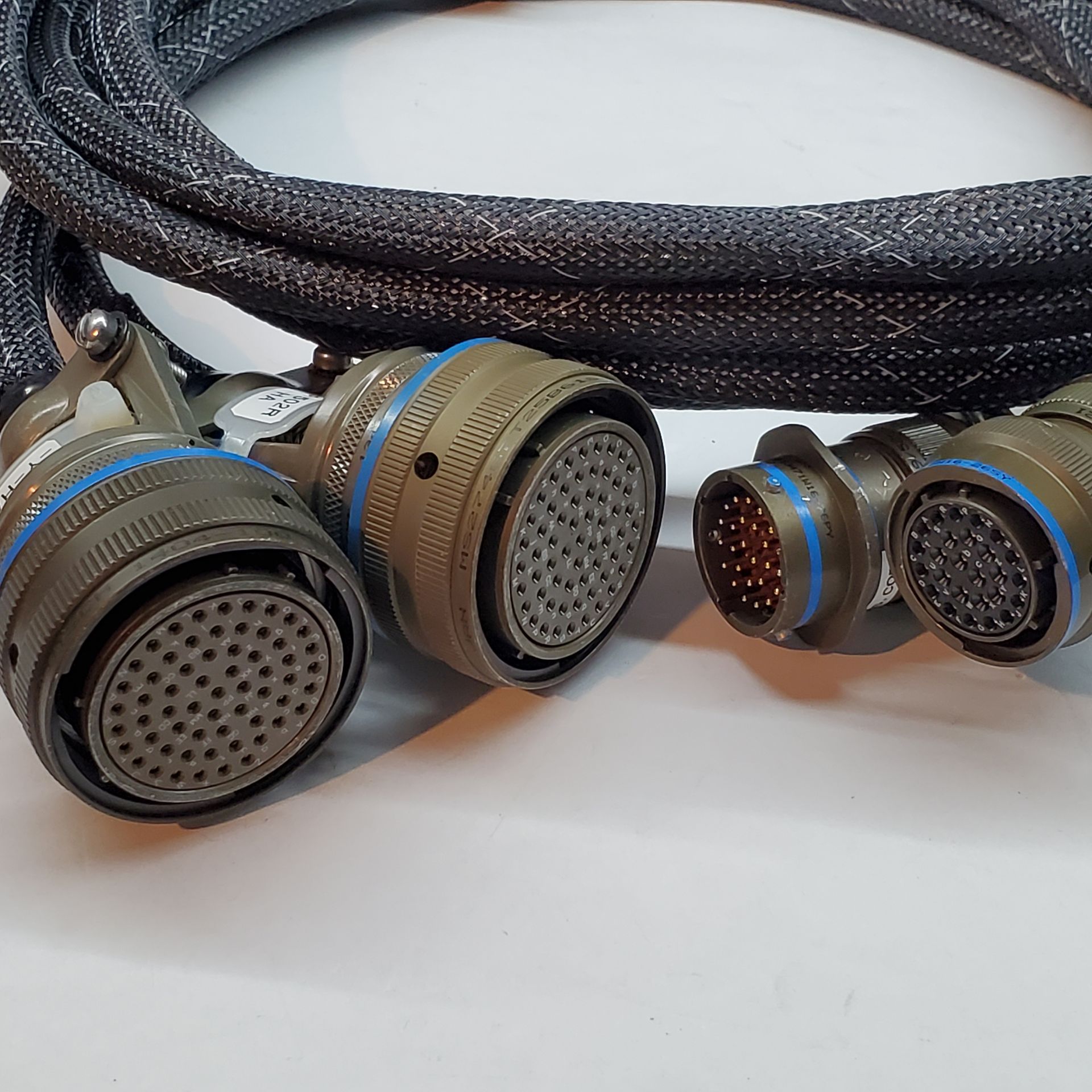

F29502Y-HA F29502R-Y-HA F2000 LX & Later With Later Arthur Q
F29502EX-Y

Short extension to mate w/ the "Y" Oriented Rotattion connector for the Pitch Arthur Q Unit.

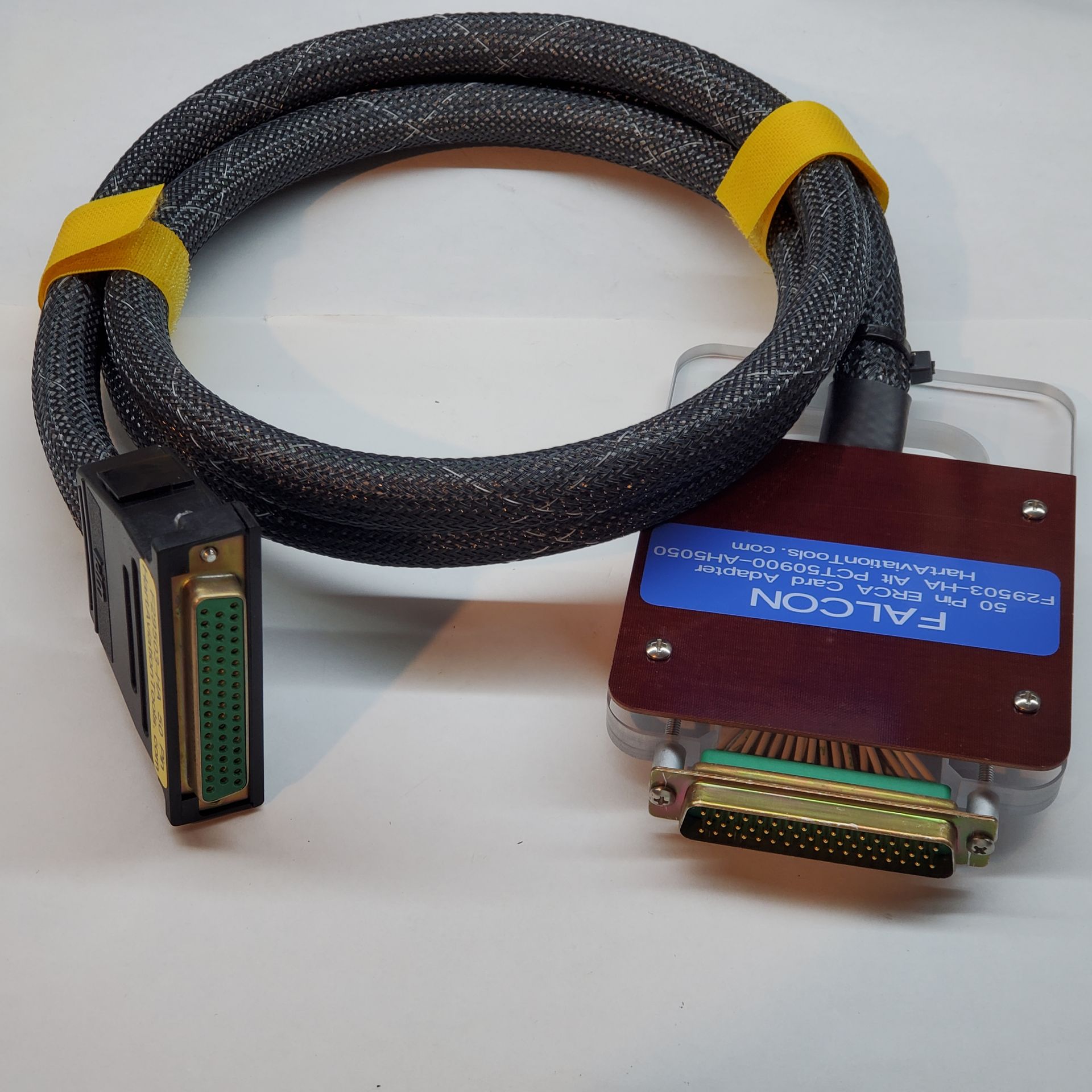

F29503-HA, PCT50900-AH5050 F29503R-HA FAL 1669503 (50 pin ERCA Car d Adapter)

Printed circuit Boards (110CZ, 120CZ, 210DL, L5DN, R5DN, L40EC, R40EC, L10ER,R10ER, L15EX, R15EX, 20GW, 30GW, 100JR, 401JE to 415JE, 417JE, 421JE to 424JE, 5KZ, L200LC, R200LC, 340NH, 40WW, 50WW, AND 60WW), Air conditioning Computer, Radio-altimeter Adaptor, King HF Transceivers, King HF Control Box. **

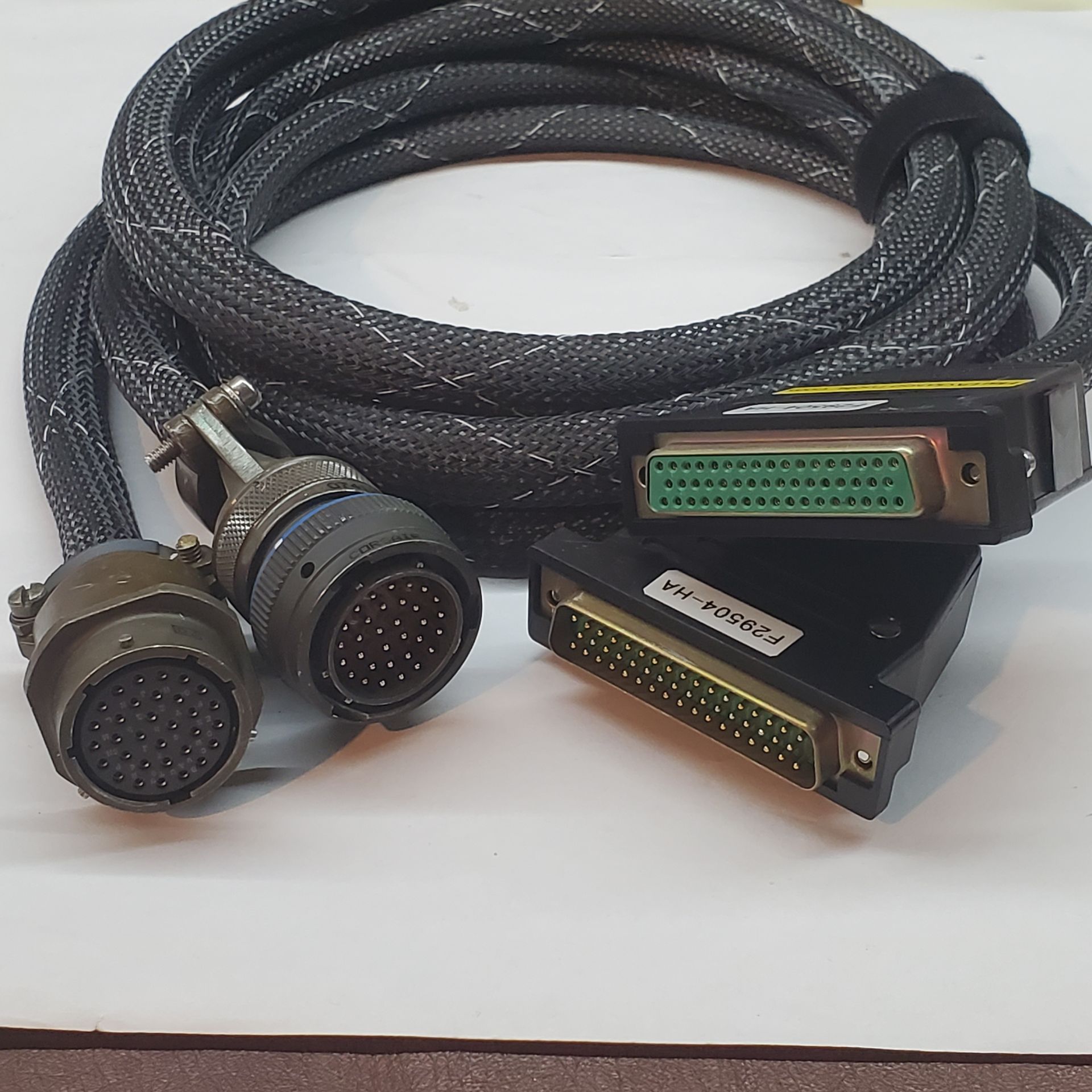

F29504-HA F29504R-HA FAL 1669504

Speed Indexer Computer, Main Electrical Boxes, Fire Control Panel, F2000
F29505-HA F29505R-HA (Pending build) FAL 1669505

Generator Control Unit, Main Electrical Boxes, F2000
F29506-HA F29506R-HA FAL 1669506

Electro-pneumatic Pressurization Valve, Main Battery Temp Probe, F2000

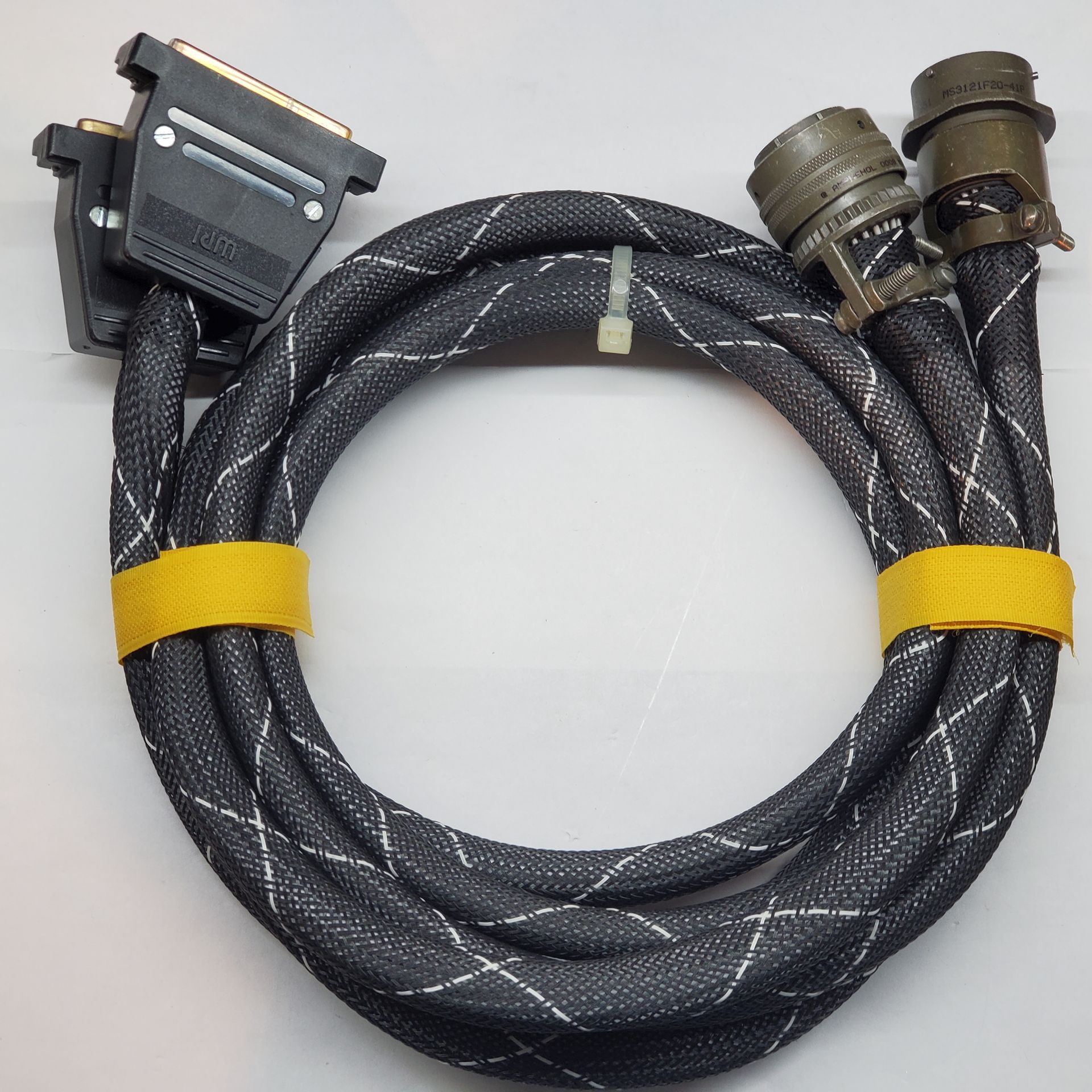

F29507-HA *PCT50900-AH5700 F29507R-HA FAL 1669507

Pitch Arthur Box, Cockpit Voice Recorder Control Box, Cut-off Connectors, fire Control Panel, Master Warning Panel **
F285423-HA F285423R-HA FAL 1285423

F900 EX LX EASy II with Winglets SB 414
F29508-HA F29508R-HA FAL 1669508

Horizontal Stabilizer Relay Box, Configuration Panel, Engine Vibration Monitoring Computer, Low Level Fuel Detection Box
29508/9-HA Combo Adapter F29508/9R-HA Combo Adapter FAL1669508/FAL

F2000
F29509-HA F29509R-HA FAL 1669509

Horizontal Stabilizer Relay Box
F29510-HA F29510R-HA FAL 1669510

Flap Position Potentiometers, Horizontal Stabilizer Actuator, Pitch Arthur Variable Bellcrank, Rear Windows Temperature Regulator Unit, Lateral Windows Temp Regulator Unit, LVDT Brake Pedal Position Transmitters, LH Main Gear door Uplock Box, RH Main Landing Gear Door Uplock Box, Cutt-off Connectors, Main Battery Fan, Wxygen Control Box

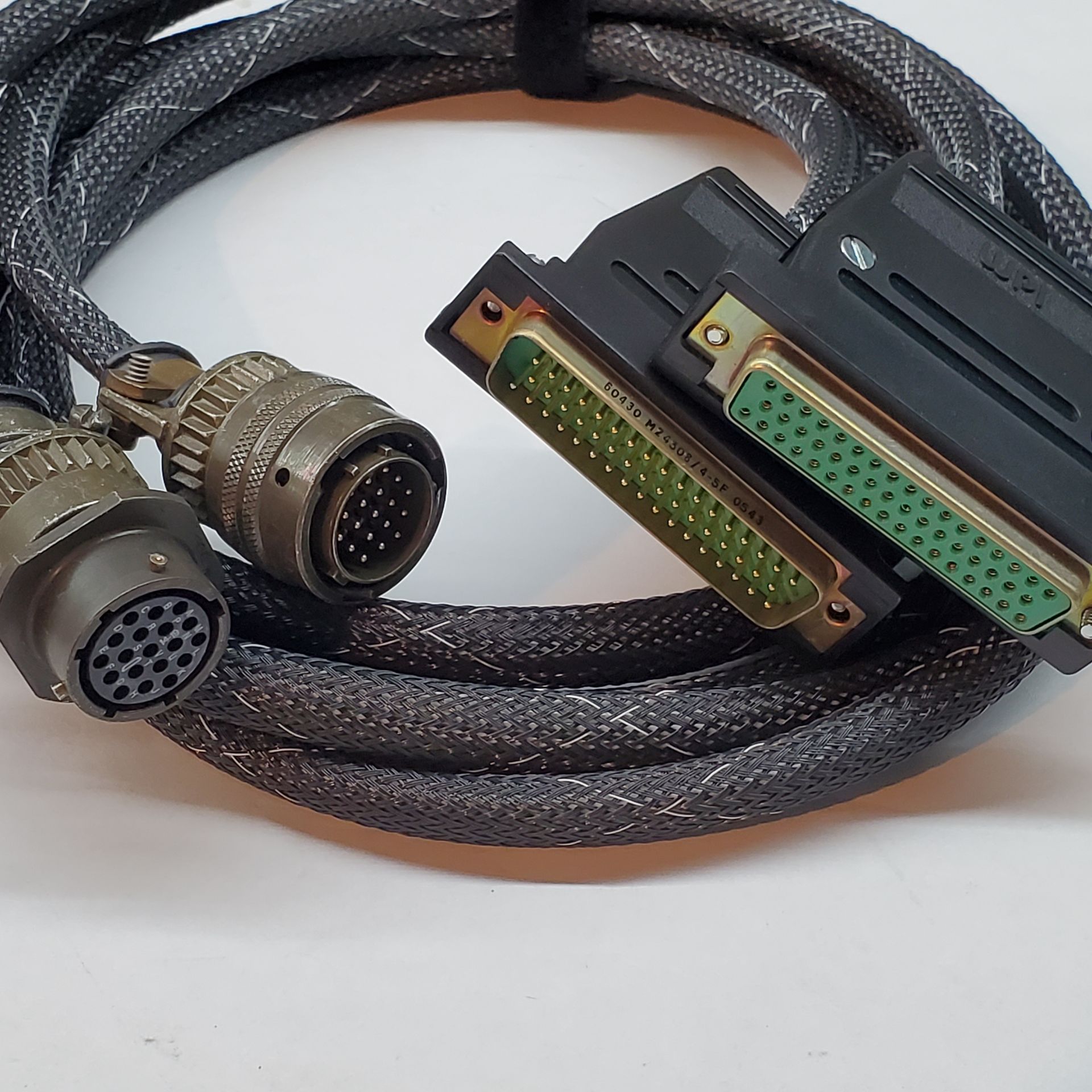

F29511-HA F29511R-HA FAL 1669511

Angle-of-Attack Sensors, Aileron Servomotor, Elevator Servomotor, Rudder Servoactuator, Elevator Servoactuator, Cut-off Connetors **
F29512-HA F29512R-HA FAL 1669512

Flap Driving Unit, Horizontal Stabilizer Repeater Box, Pilot Windshield Temp Regulator Unit, Copilot Windshield Temp Regulator Unit, Wing Anit-ice Valve, Nose Wheel Steering Control Handwheel, Landing Gear/Door Selector Valve, Hydraulic Isolation Valve, Feeder Isolation Valve, Engine Bleed Valves, Temp C ontrol Valves, Turbocooler Anti-ice Valve, Jet Pump Valve, Recirculation Valve, Cut-off Connectors, APU Door Actuator, Water Tank Gauge, ADF 1 Antenna, ADF 2 Antenna, King HF 1 Coupler, KIng HF 2 Coupler, King HF Capacitor Box, Low level Fuel Detection Box, Smoke Detector, Fire Control Panel, Turbofan by- pass valve tester **

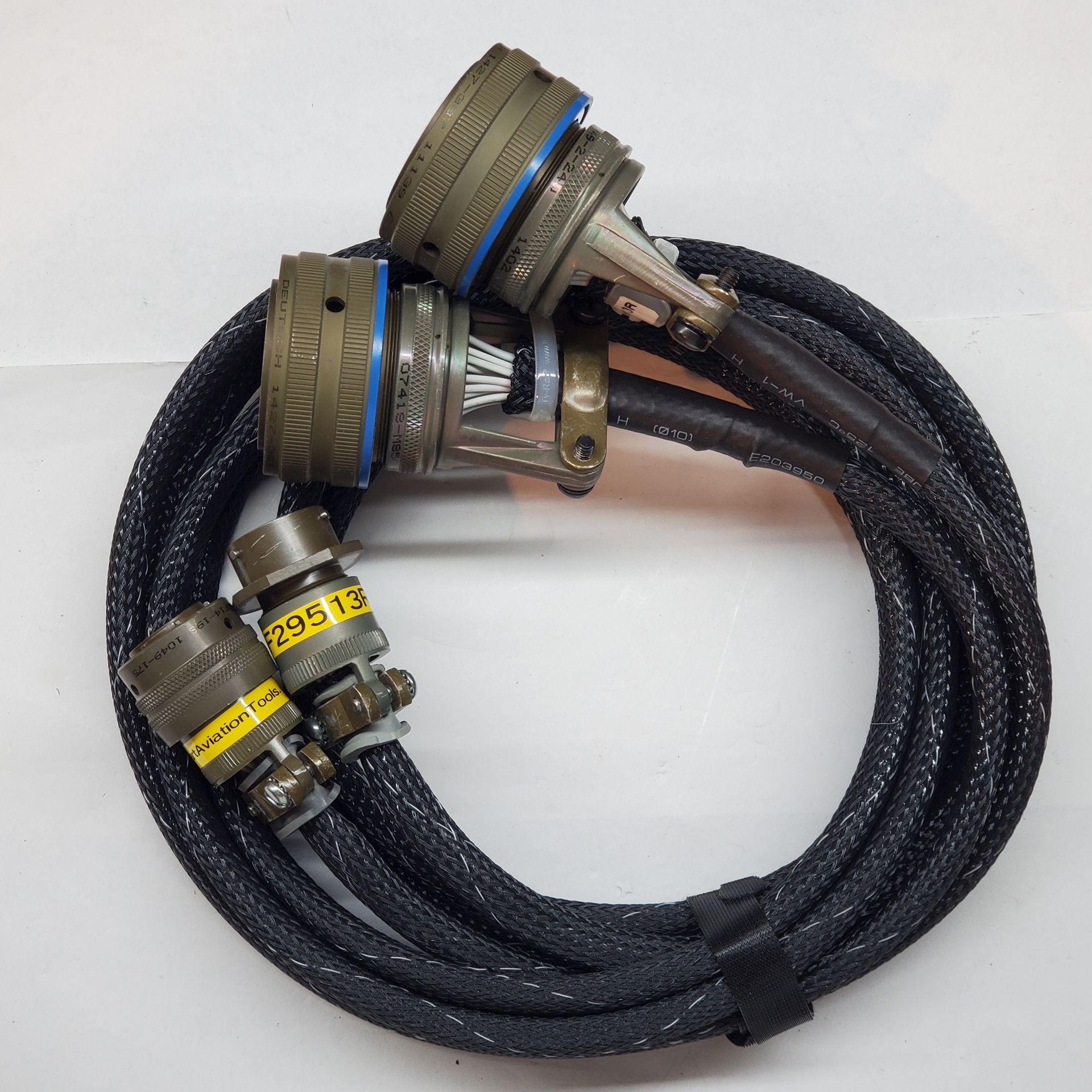

F29513-HA F29513R-HA FAL 1669513

Slats/Flaps Control Box, Throttle Control Unit, Landing Gear Control Lever, Cut-off Connectors, Pressure Fueling Panel, Audio Warning Unit, **
F295I4-HA F29514R-HA FAL 1669514

Throttle Control Unit, Airframe De-ice
F29515-HA F29515R-HA FAL 1669515

Throttle Control Unit, Trim Position Indicator, Audio Warning Unit
F29516-HA F29516R-HA FAL 1669516

LVDT Brake and Steering Position Transmitters

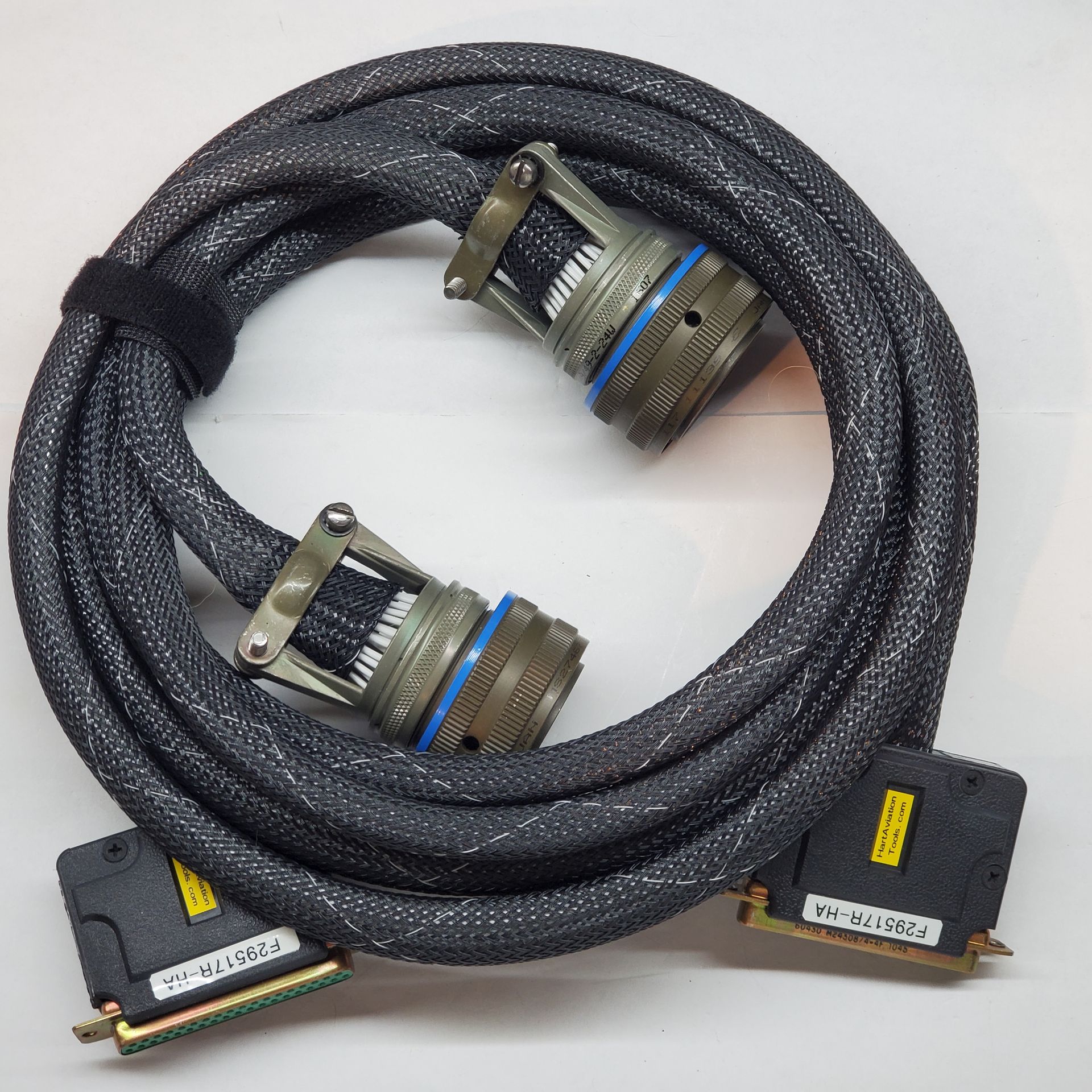

F29517-HA / *PCT50900- AH3241 F29517R-HA FAL 1669517 (37 Pin)

Braking and Steering Computer Units, Printed Circuit Board, Weather Radar Transceiver

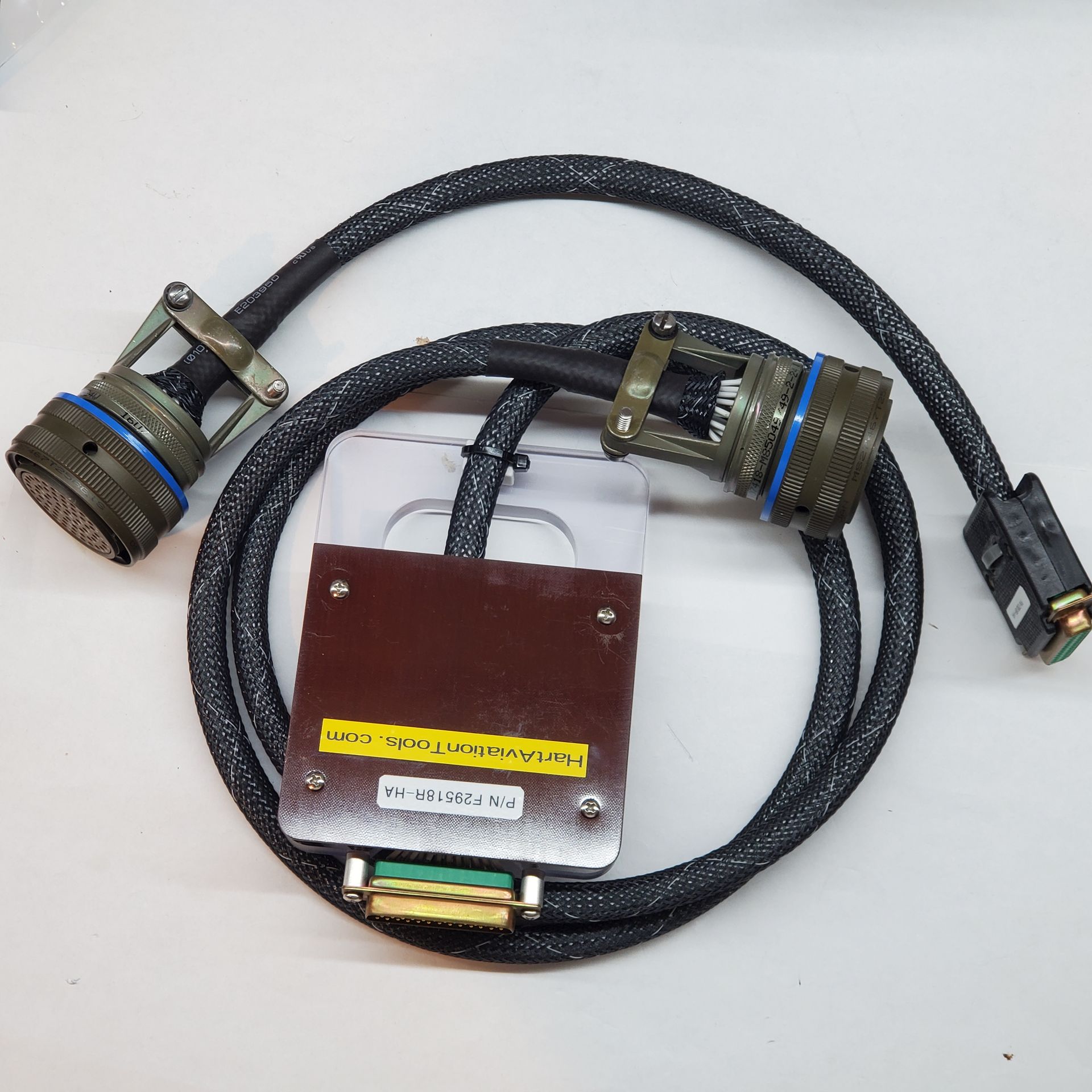

F29518-HA F29518R-HA Pin ERCA Card adapter) TF50B- 39-002

Braking and Steering Computer Units, Cabin Lighting Control Panel, ATC 1 Mode S Coder, ATC 2 Mode S Coder, SELCAL Coder
F25236-HA F25236R-HA FAL 1705236

Fuel Quantity Management Computer
F25237R-HA FAL 1705237

Cut-off Connector, Fuel Quantity Management Computer
F25238R-HA FAL 1705238

Fuel Quantity Management Computer
F25239-HA F25239R-HA FAL 1705239

Slats/Flaps Control Box

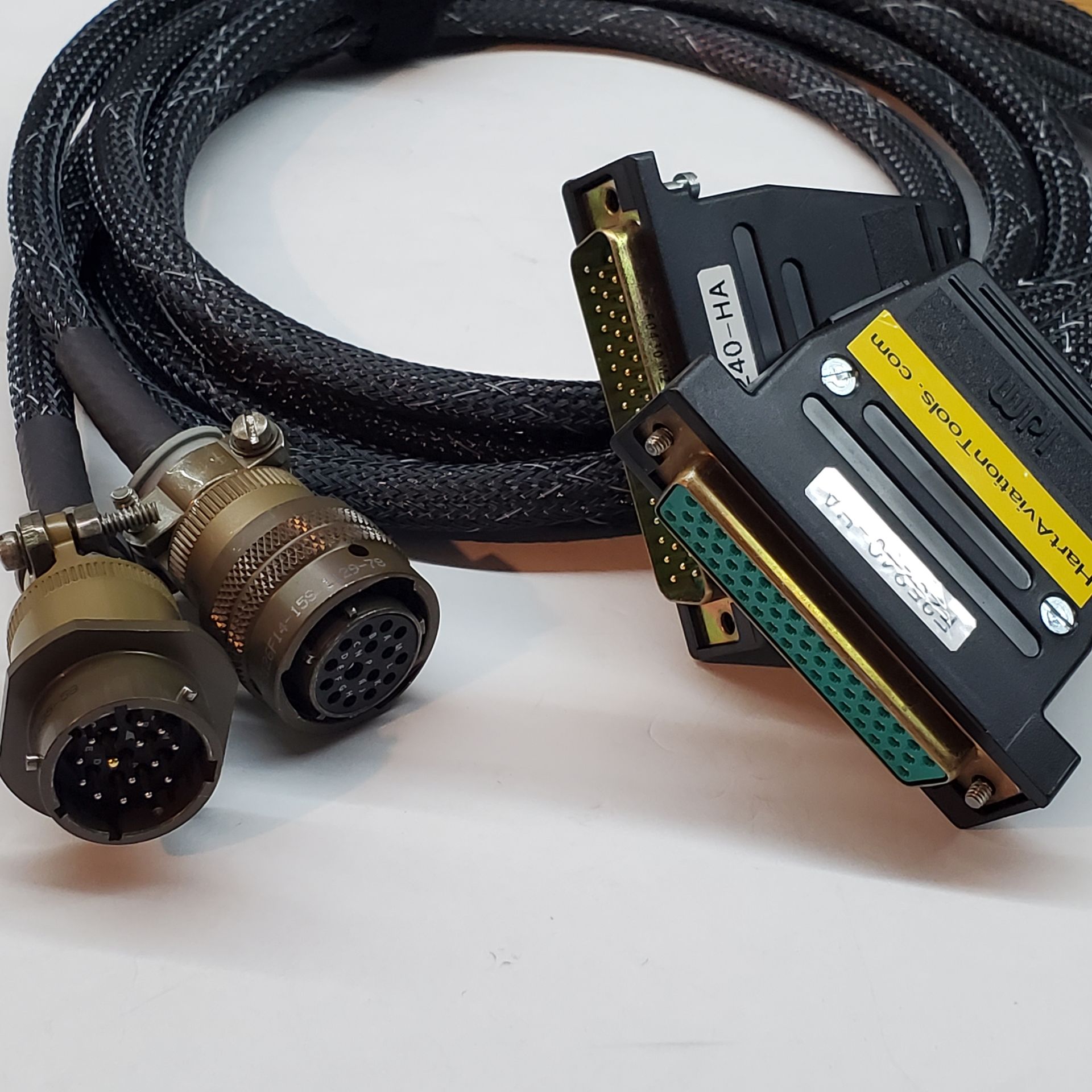

F25240-HA F25240R-HA FAL 1705240

Throttle Control Unit, Cut-off Connectors, Emergency Lighting Battery Packs, Battery Temperature Indicator, Ground Power Unit Relay Box. **

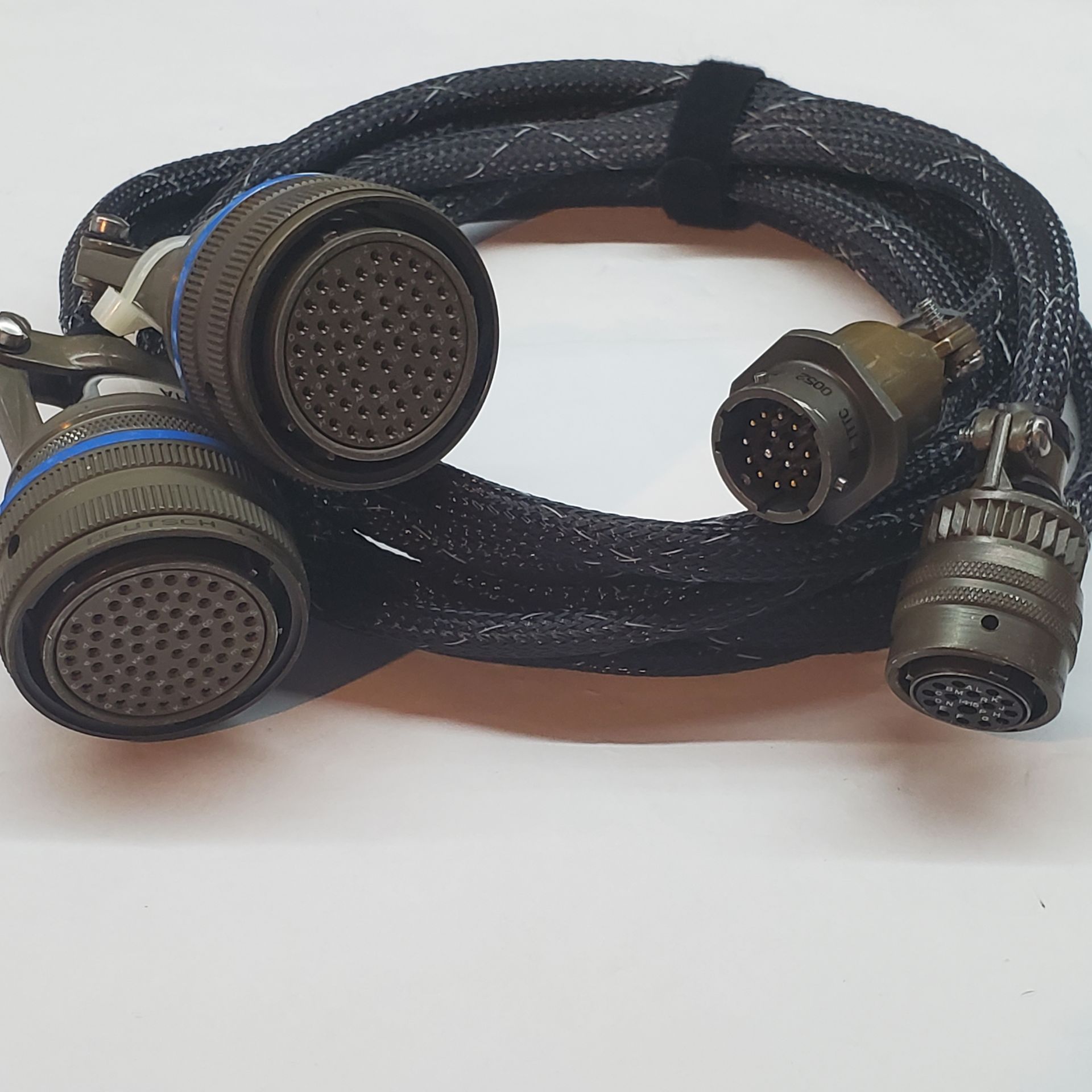

F25241-HA F25241R-HA FAL 1705241

Throttle Control Unit

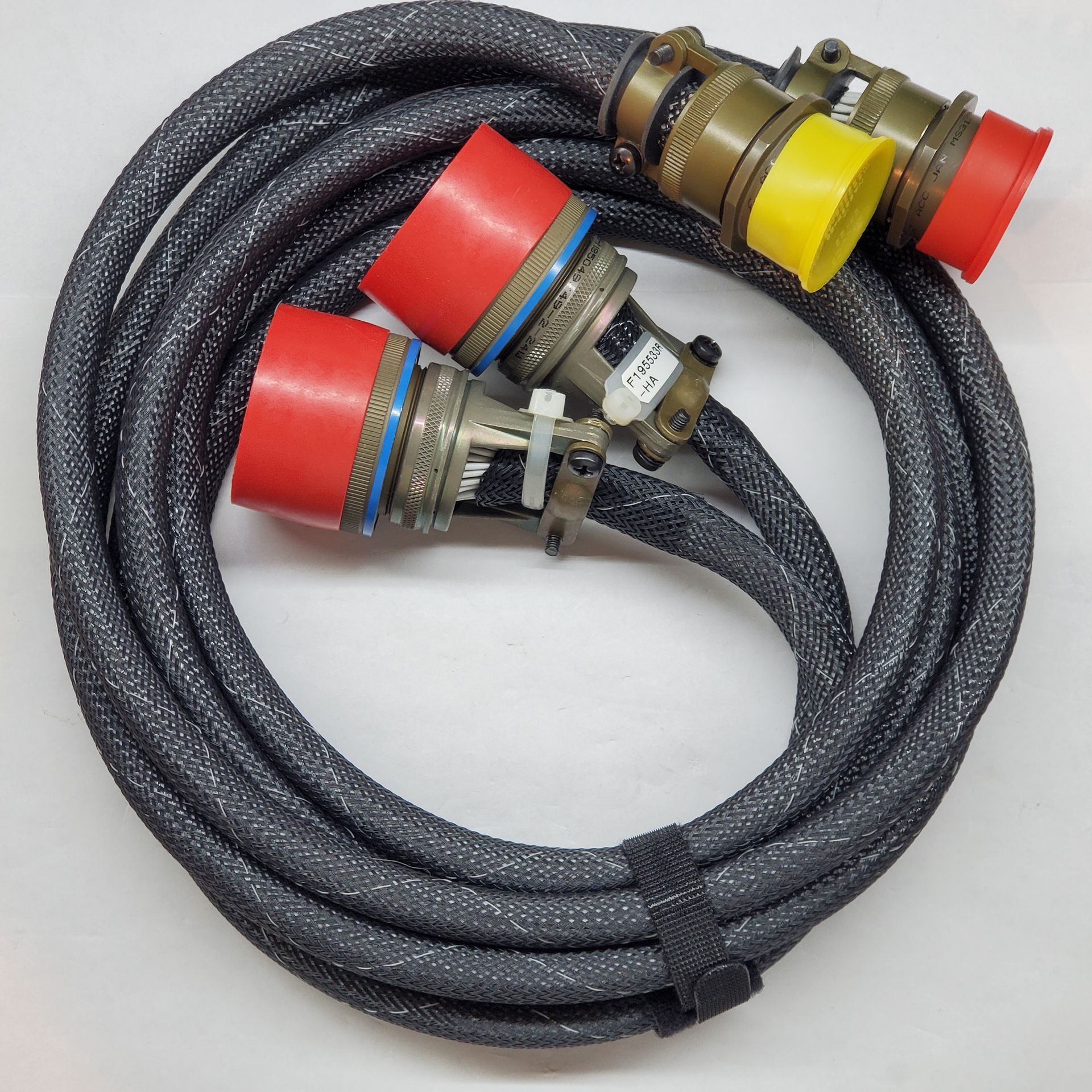

F195533-HA F195533R-HA FAL 1915533

**
F195534-HA F195534R-HA FAL 1915534

**
F26798-HA F26798R-HA FAL 2296798
F50-278011-HA F278011R-HA

F50 AOA Adapter Cable for 90 Pin Breakout Box
PCT50-AH5015 (50 to 15 Pin ERCA Card Adapter)* PCT90- AH9015R (90 to 15 Pin ERCA Card Adapter)** Alt: Fl894099R-HA FAL1894099 (TF50B-39-003)
1093R-50P-HA (Adapts 90 pin bOX to 50 pin adapter cables)

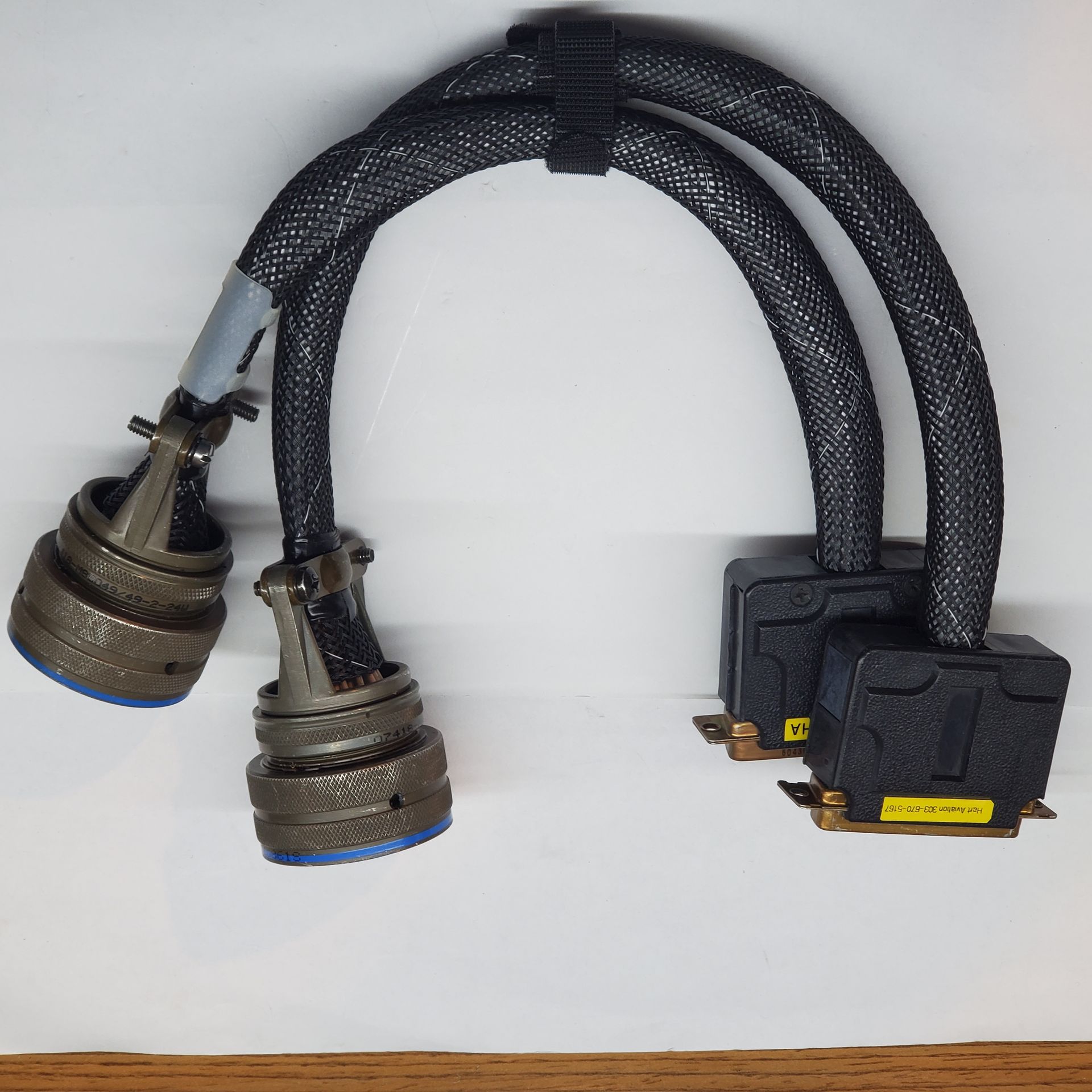

50- 1093M-HA (adapts 50 pin chassis to 90 pin adapter cables ) 1093-50P 90 Pin to 50 Pin Adapter Harness

50 Pin Box to 90 Pin Box Adapter Cable Set, and, 90 Pin to 50 Pin Adapter Harness Set

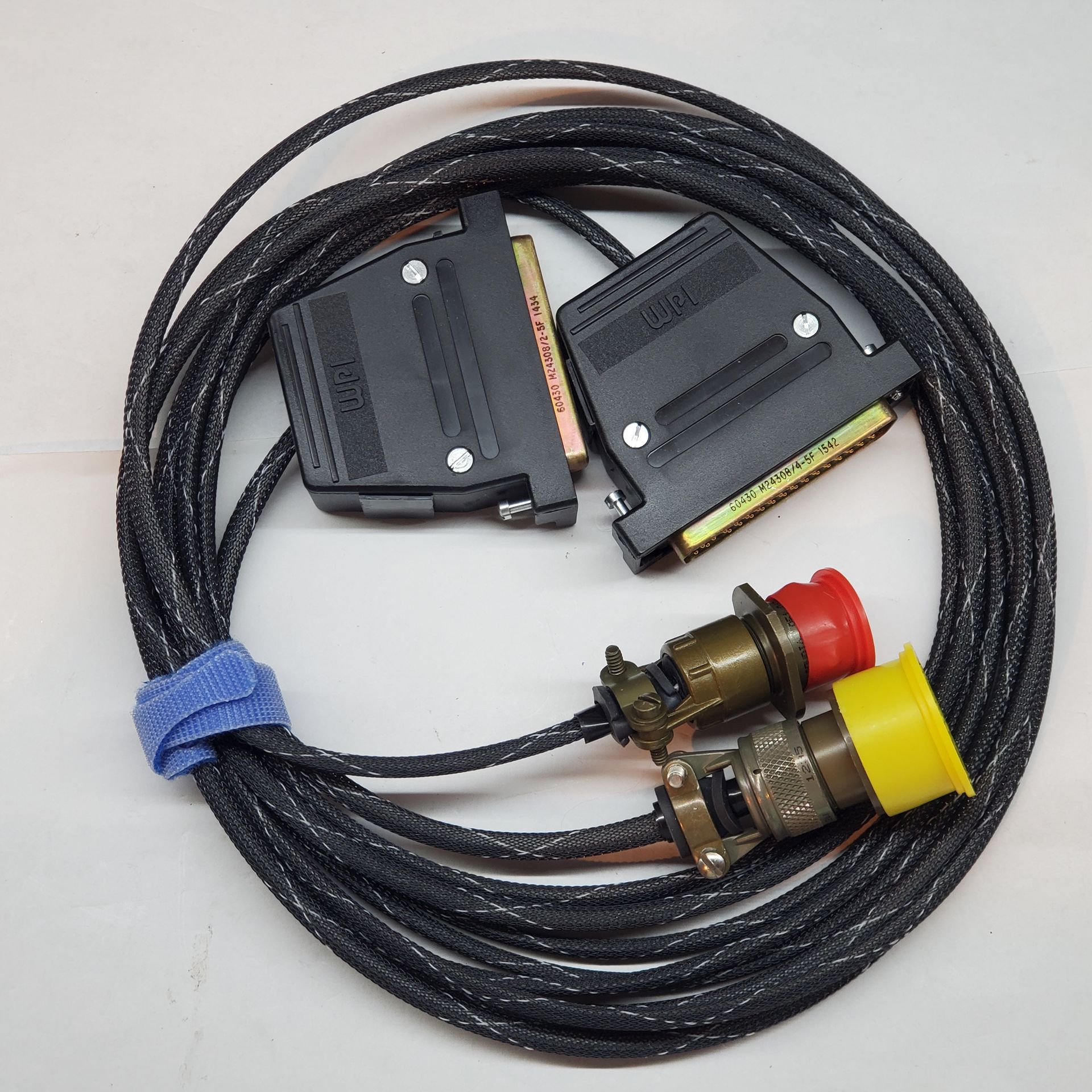

F50-J54CA50-HA F50-J54CA50R-HA FALI487604 01COR301BOO RC12-3PY50
F50-J54CB50-HA F50-J54CB50R-HA FAL059562501COR301BOORC12-3P50

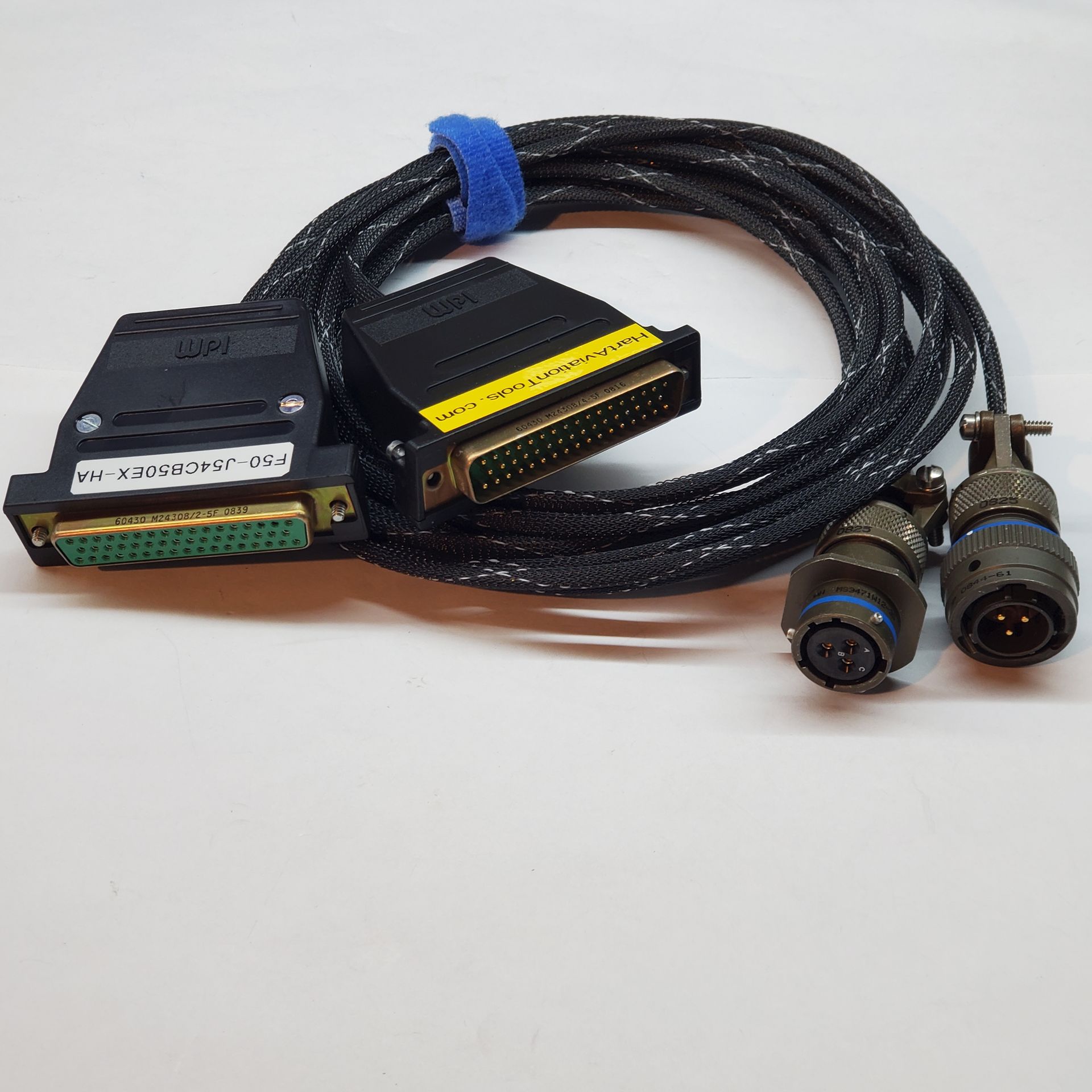

FSO-J54CBSOEX-HA F50-J54CB50EXR-HA FALI7081390lCOR3026R12-03SN1LL

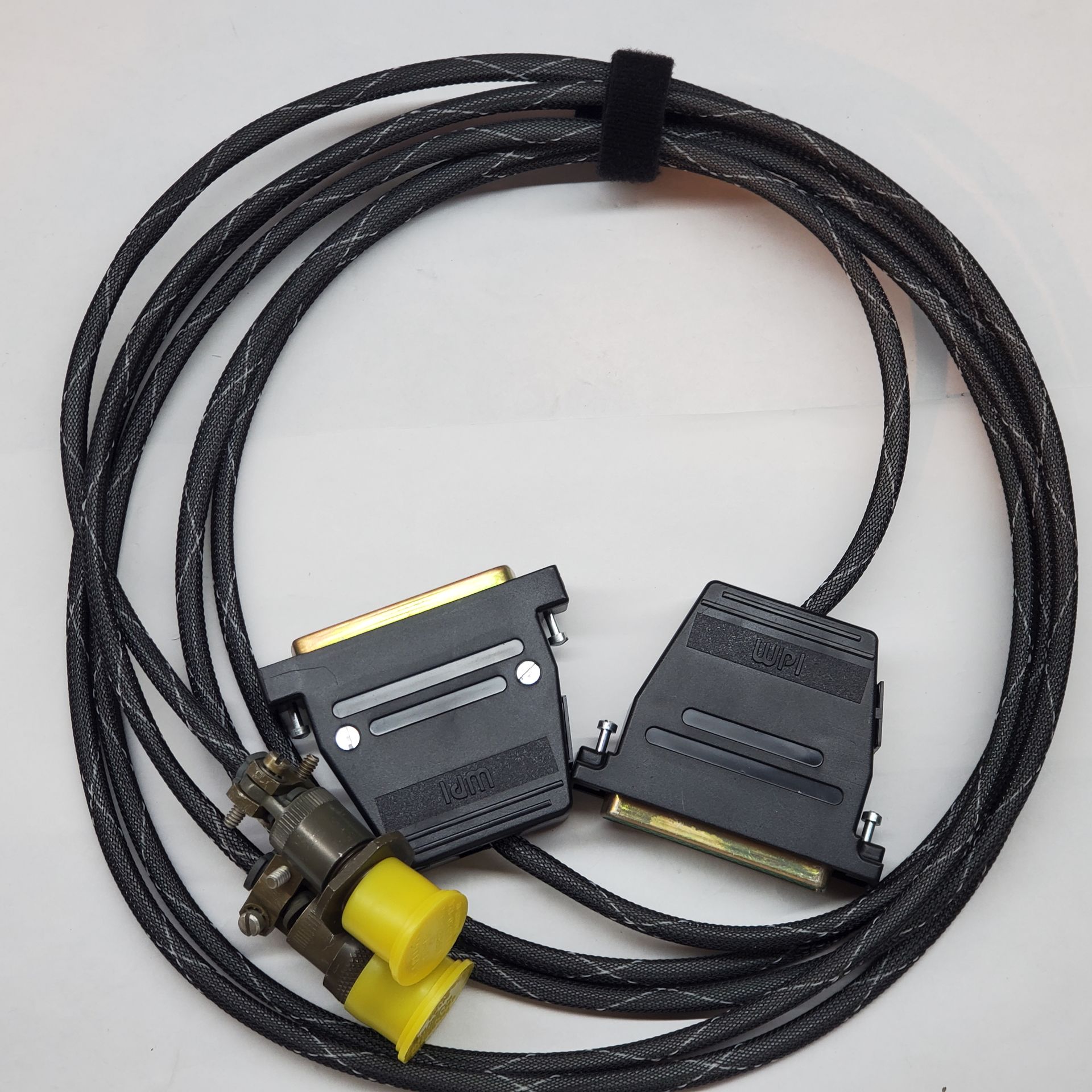

F50-27-287-HA F2-27-287R-HA 01C0R3020Rl0- 06SN1L

Flap Position Transmitter Test Cable
HA-SPBB3 HA-SPBB3R-HA 02COR300B06RC18-32P5002COR301B06RC14-19P5002COR301B06RC10-6S50
F2-6SW55-HA F2-6SW55R-HA 85106RC106SW55

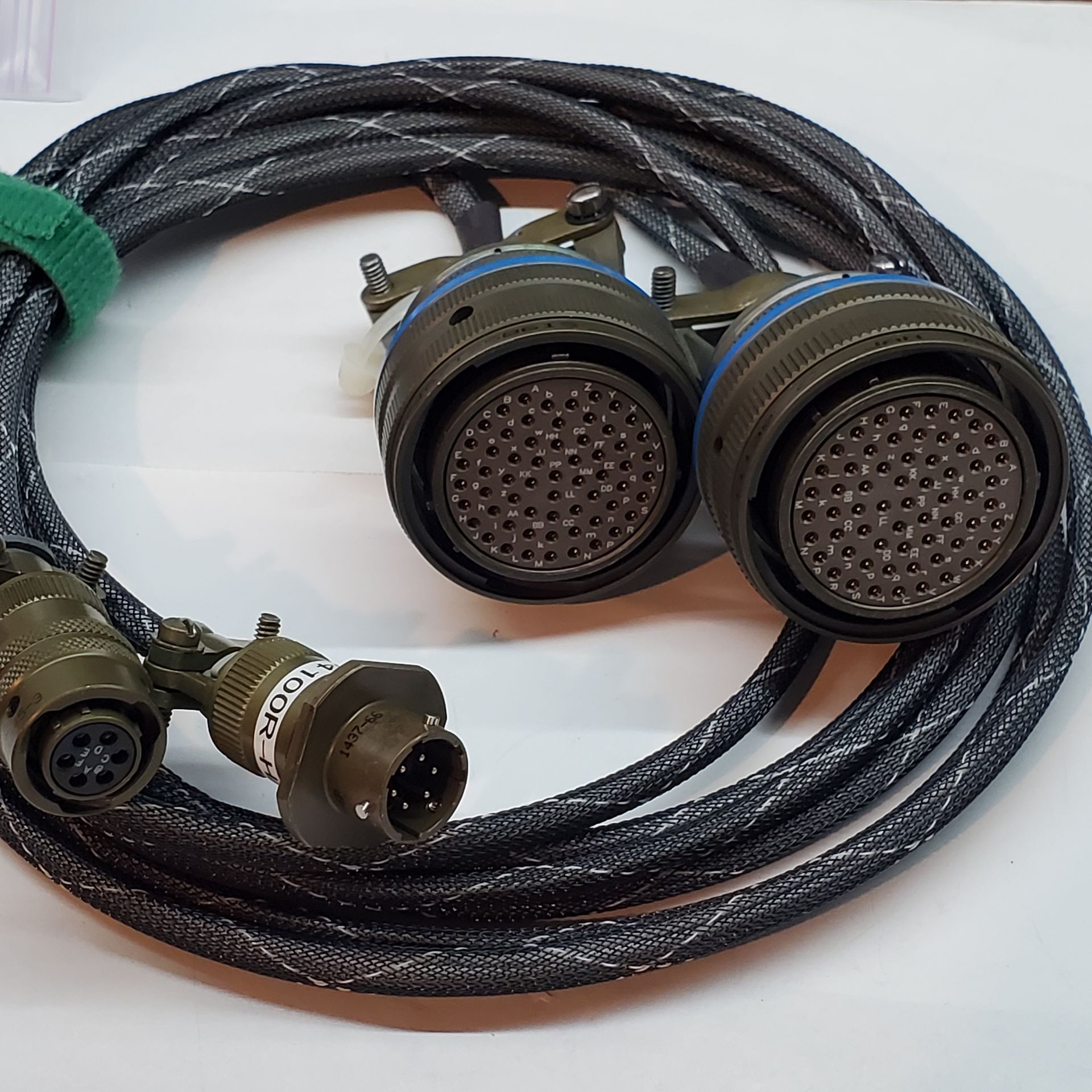

F1894100-HA F1894100R-HA FAL1894100

**

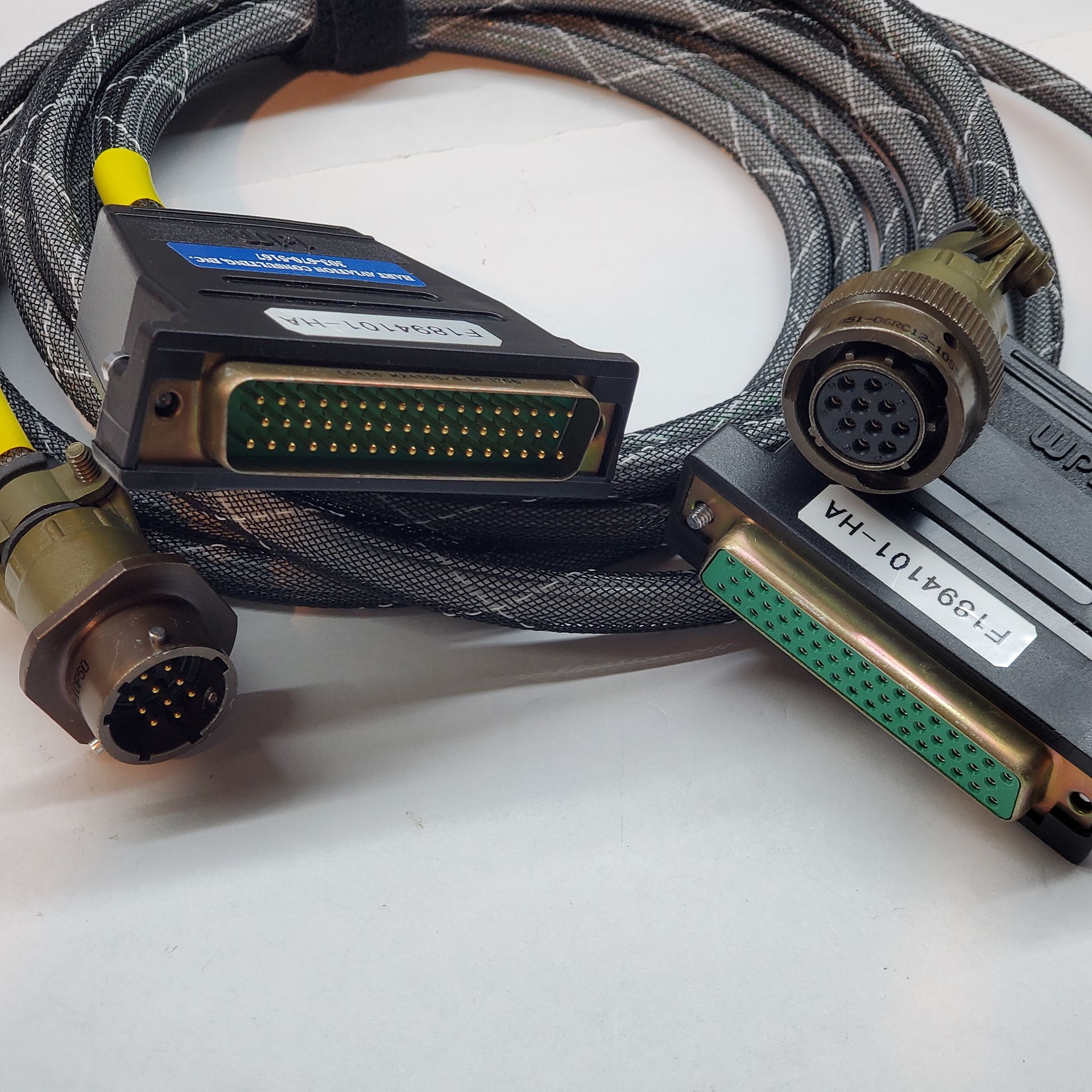

F1894101-HA F1894101R-HA FAL1894101

Yaw Trim Control Safety Relays AC > 157
1093-12-3PY-HA AE1093-01
AH9015R-HA

15 Pin Printed Circuit Card Adapter for 90 Pin Box
PCT50900-F9EX-78TR

F900 TR Test Adapter Cable-OBSOLETE NOT USED
AE1093-R12PW-HA AE1093-01/HE301B02R14-12W1A
F50PST-ADP-9/2

F900/2000 Adapter Harness-F50 Proximity Box Connector/Adapter
L45-4900-01

Lear 45 APU Bleed Load Control Valve Adapter (Patch Cable)
L45-7800-01

Lear 45 Thrust Reverser Adapter Cable
L45-7800-02

Lear 45 Thrust Reverser Adapter Cable-32 Pin
F2000GF/50GF

F2000 G/F Box TO F50/50EX Adapter Harness
34-413-HA

F2000 EX EASy, F900EX EASy Radio Altimeter Zero Height Adjustment Cable

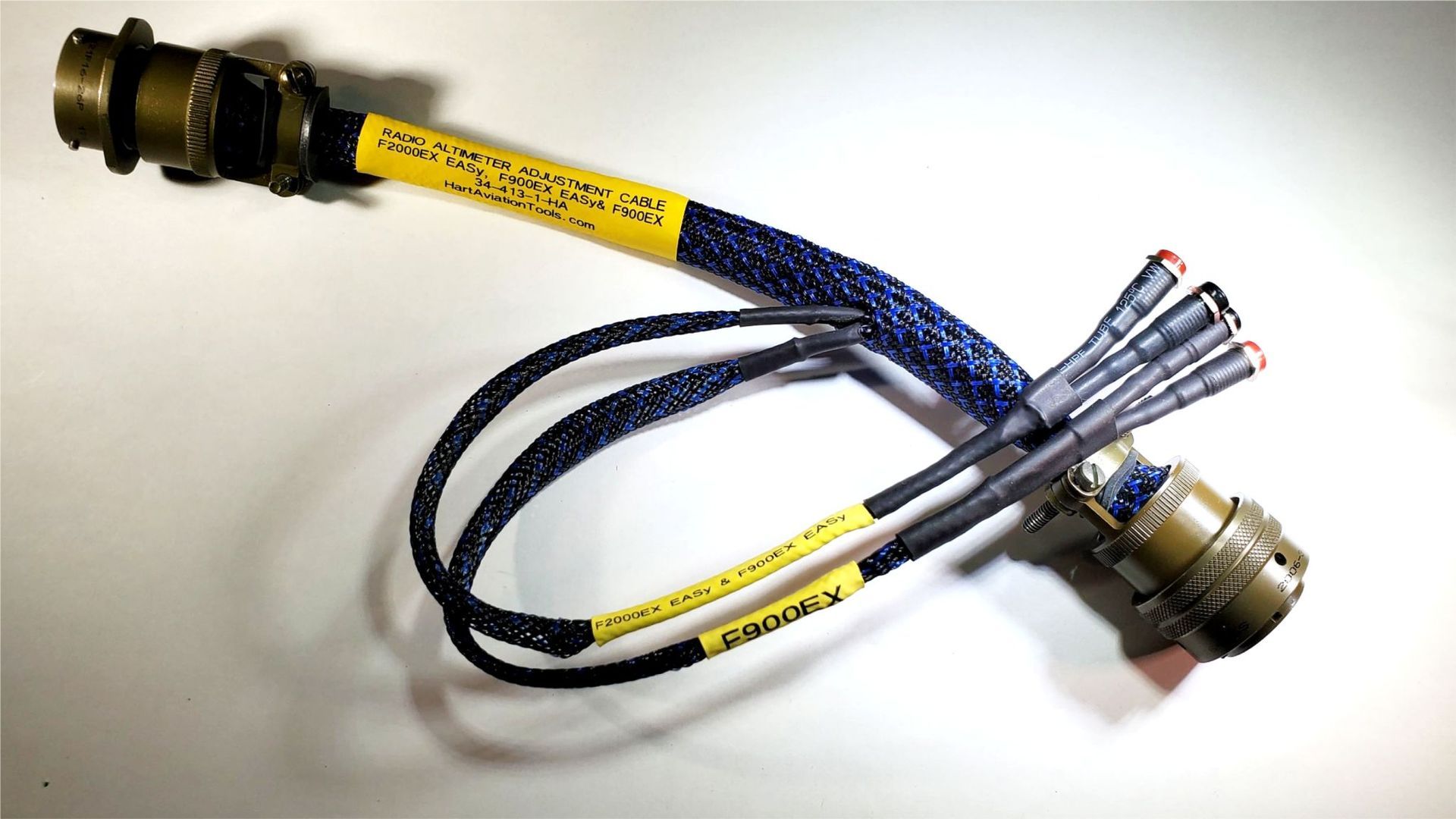

34-413-1-HA

F2000EX EASy, F900EX EASy and F900 EX Radio Altimeter Zero Height Adjustment Cable

Hart Aviation Tools will build adapter cables to meet your requirements for the 50 Pin Breakout box & 90 Pin (AE1093-01) Breakout Box or standalone breakout boxes for any type aircraft.

Cross Reference Index

Hart Aviation

Dassault Falcon Jet

HAC-AE1093-1A

90 Pin Breakout box capable of handling numerous test functions with the aid of adapter cables suited for various tests.

P/N AE1093-01

90 Pin Cut-off (breakout box) for testing of ERCA printed Circuit cards and various electrical systems.

PCT50900-50

50 Pin Breakout box capable of handling numerous test functions with the aid of adapter cables suited for various tests.

TF50B-39-001

50 Pin breakout box for testing of ERCA printed Circuit cards and systems.

F29518-HA & F29518R-HA
PCT50-AH5015 & PCT90-AH9015R

15 & 25 Pin Adapter harness mates to 50 or 90 pin Breakout box(s) for testing of printed circuit cards and systems. (Adapter cables fit Dassault 50 & 90 pin breakout box).

TF50B-39-002

(25 pin Breakout box)
TF50B-39-003 or FAL1894099

(15 Pin Breakout Box) Connector P/N 01COF501F15BS001

F2000-3260-27

Falcon Ground/Flight Simulation Set fits Falcon 900 & 2000 Series Aircraft.

F2MA932601 & F2MA932601A1

In-flight Simulation Tool for the Falcon 2000 & 900.

50GF-3200-2

Falcon 50/EX Ground/Flight Simulation Set.

Falcon 50 & 50EX In-flight Simulation Tool.

No Manufacturer tool shown.

F900PST-3200

Proximity Switch Tester fits Falcon 50, 900 and 2000 series aircraft.

F218362, F21836001 & F218362001 P/N FGFB932025

Proximity Switch Test Set.

FAL24-PCB/EXT-7

Quick and easy tool for this electrical test (Work Card 24-313).

Falcon 2000 Battery Reverse Current Test

DFJ P/N ??

7XWOWXC203-A1-HA

Falcon Ground/Flight Simulation Set fits Falcon 7X & Falcon 8X.

F7XC203200100

Falcon 7X Ground/Flight Simulation Set.

HA-TF50B55301A-1

Horizontal Stab Fairing removal tool fits Falcon 50, 900 & 2000 Series Aircraft.

TF50B55301A

Horizontal Stabilizer Fairing removal tool.

DA-50/900/200/30 Telescopic Tube Test Set

Utilized to accomplish the leak test of Telescopic Anti-ice tubes. Fits Falcon 50, 900 and 2000 series aircraft.

Telescopic Tube Test Set

No manufacturer tool shown.

  • P/N PCT50900-AH1525 - Cable Adapter Set provides adaptation of the 50-Pin Breakout Box to 15 and 25-Pin ERCA modules.
  • P/N PCT50900-HSRCB-1 - Horizontal Stabilizer Cable Set provides adaptation of the 50-Pin Breakout Box to the Horizontal Stabilizer Relay circuits and Windshield Heat circuits. Falcon 50 & 900
  • P/N PCT50900-AH5700 - Wing Disconnect Adapter Cable Set provides adaptation of the 50-Pin Breakout Box for the Falcon 900 wing circuits.
  • P/N PCT50900-AH3241 37 pin to 50 pin adapter cable set for testing and trouble shooting of Bleed Air System Computer (BASC) on the Falcon 50EX, 900EX and 2000EX and the Brake Steering Control Units on the 2000 as well.
  • P/N HA-SPBB3 Reference Falcon 900 Functional Test of Pitch Arthur Control System Operation Code: 273071. Three (3) cable set mates with the 50 Pin breakout Box allowing for efficient testing and troubleshooting.
  • P/N F2-6SW55-HA Reference Operation Code 271256 and Work Card 27-108. Our adapter cable mates with the 50 pin Breakout box built by Hart Aviation or Dassault.
  • P/N PCT50900-7800-1 Adapts to the 50 Pin Breakout Box and is designed with two long leads with one connector for each of the main connectors 101KR and 102KR, located under the top and bottom TR Stangs. The Adapter Cable comes complete with an overlay that shows the contact layout for each of the actuator switches allowing for quick and efficient trouble-shooting.
  • Harness built to your specifications to adapt Breakout Boxes to aircraft systems.
  • We have added an adapter cable P/N F2000GF/50GF which adapts the F2000-3260-27 (F2000 & 900) to the Falcon 50 aircraft.
